MLT MS Connection

MLT MS type mechanical connection for conveyor belts:

The MS mechanical connection is an optimal solution for connecting conveyor belts manufactured by MLT Minet Lacing Technology SA. Thanks to simple assembly, which does not require vulcanizing presses or specialized service teams, it has been used in many industries.

The MS65 connection was certified by  the Central Mining Institute .

The most important advantages:

  • the possibility of reassembly after a short period of use;
  • extremely fast installation with minimal resources;
  • no special tools for installation (only a screwdriver);
  • templates and pre-drillings are unnecessary (self-tapping screws);
  • thanks to the screws, very good clamping of the belt between the connector plates;
  • high degree of tear-out strength;
  • 50% thicker steel than comparable joints available on the market;
  • depending on the intended use, made of galvanized or non-magnetic stainless steel;
  • above-average degree of vitality.
MS MLT mechanische Verbindungen

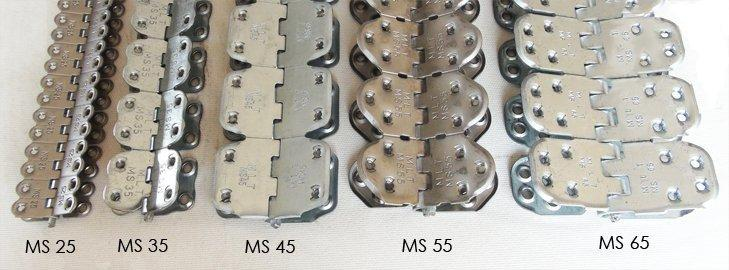

 MS 25MS 35MS 45MS 55MS 65
Belt thickness, mm

3.5–7.5

4.5–10.0

6.0-11.0

9.0-15.0

10.00-18.00

Min. roller diameter, mm

75

90

125

250

450

Max. belt strength, N/mm

450

630

650

1000

1250

Max. belt tension, N/mm

45

63

65

100

125

Rod ø  , mm
45.16.5810
Fastener material
galvanized carbon steel or AISI 316 non-magnetic stainless steel

galvanized steel

Screw materialgalvanized or non-magnetic stainless steel
Material of the bargalvanized steel with nylon coating or non-magnetic stainless steel with nylon coating
Fixingusing self-tapping screws, using an electric or pneumatic screwdriver
