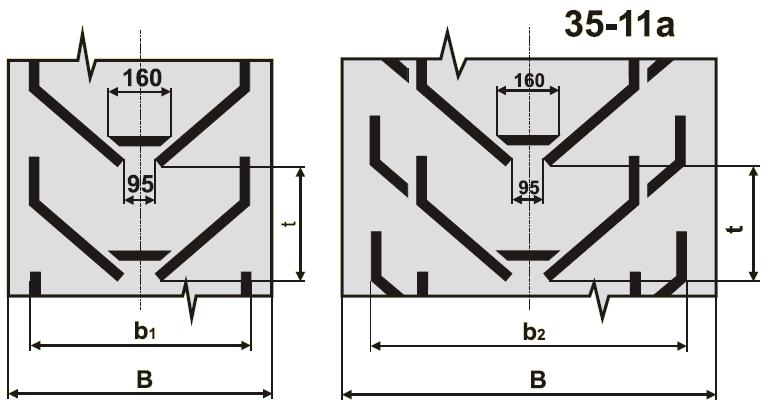

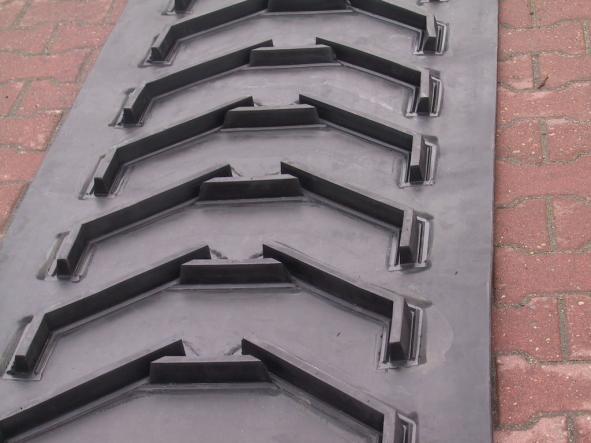

Profile 35-11
Profile 35-11:
Recommended operating parameters
The minimum diameter of the drums (mm)
Maximum effective working angle
Opportunity to working in trough
315
40°
YES
B
mm
b
1
mm
b
2
mm
t
mm
V Profile
650 ÷ 800
565
260
1000 ÷ 1200
800
305
Return back to the "Profiles" tab
